IrrIMGUI::Private::CIMGUIHandle Class Reference

Use an object of this class to setup the IMGUI for Irrlicht and to render the content. More...

#include <CIMGUIHandle.h>

Inheritance diagram for IrrIMGUI::Private::CIMGUIHandle:

Collaboration diagram for IrrIMGUI::Private::CIMGUIHandle:

Public Member Functions
Constructor and Destructor
	CIMGUIHandle (irr::IrrlichtDevice *pDevice, CIMGUIEventStorage *pEventStorage=nullptr, SIMGUISettings const *pSettings=nullptr)
	Use this constructor when you want special settings. More...
	CIMGUIHandle (irr::IrrlichtDevice *pDevice, CIMGUIEventStorage *pEventStorage, SIMGUISettings const &rSettings)
	Use this constructor when you want special settings. More...
virtual	~CIMGUIHandle (void)
	Destructor. More...
Render and drawing methods
virtual void	startGUI (void)
	Call this methods before you draw the IMGUI elements and before calling "drawAll()". More...
virtual void	drawAll (void)
	Call this function after "startGUI()" and after you draw your GUI elements. It will render all elements to the screen (do not call it before rendering the 3D Scene!). More...
GUI settings
virtual SIMGUISettings const &	getSettings (void) const
virtual void	setSettings (SIMGUISettings const &rSettings)
Font operations
virtual ImFont *	addFont (ImFontConfig const *pFontConfig)
	Adds a font to the IMGUI memory. More...
virtual ImFont *	addDefaultFont (ImFontConfig const *pFontConfig=NULL)
	Adds the default font to the IMGUI memory. More...
virtual ImFont *	addFontFromFileTTF (char const *pFileName, float FontSizeInPixel, ImFontConfig const *pFontConfig=NULL, ImWchar const *pGlyphRanges=NULL)
	Adds a font from a TTF file to the IMGUI memory. More...
virtual ImFont *	addFontFromMemoryTTF (void *pTTFData, int TTFSize, float FontSizeInPixel, ImFontConfig const *pFontConfig=NULL, ImWchar const *pGlyphRanges=NULL)
	Adds a font from a TTF byte array to the IMGUI memory. More...
virtual ImFont *	addFontFromMemoryCompressedTTF (void const *pCompressedTTFData, int CompressedTTFSize, float FontSizeInPixel, ImFontConfig const *pFontConfig=NULL, ImWchar const *pGlyphRanges=NULL)
	Adds a font from a compressed TTF byte array to the IMGUI memory. More...
virtual ImFont *	addFontFromMemoryCompressedBase85TTF (char const *pCompressedTTFDataBase85, float FontSizeInPixel, ImFontConfig const *pFontConfig=NULL, const ImWchar *pGlyphRanges=NULL)
	Adds a font from a compressed TTF byte array that uses the base85 character encoding to the IMGUI memory. More...
virtual void	compileFonts (void)
	This function copies all fonts that have been added with "addFont/addDefaultFont" into graphic memory. More...
virtual void	resetFonts (void)
	Resets the font memory and restores the default font as the one and only font in the system. More...
Common Font Glyph-Ranges
virtual ImWchar const *	getGlyphRangesDefault (void)
virtual ImWchar const *	getGlyphRangesJapanese (void)
virtual ImWchar const *	getGlyphRangesChinese (void)
virtual ImWchar const *	getGlyphRangesCyrillic (void)
Image and Texture methods
virtual IGUITexture *	createTexture (irr::video::IImage *pImage)
	Creates a GUI texture object out of an Irrlicht image. More...
virtual IGUITexture *	createTexture (irr::video::ITexture *pTexture)
	Creates a GUI texture object out of an Irrlicht texture. More...
virtual void	updateTexture (IGUITexture *pGUITexture, irr::video::IImage *pImage)
	Updates a GUI texture object with an Irrlicht image. More...
virtual void	updateTexture (IGUITexture *pGUITexture, irr::video::ITexture *pTexture)
	Updates a GUI texture object with an Irrlicht texture. More...
virtual void	deleteTexture (IGUITexture *pGUITexture)
	Deletes an texture from graphic memory. More...
Public Member Functions inherited from IrrIMGUI::IIMGUIHandle
virtual	~IIMGUIHandle (void)
	Destructor. More...
Public Member Functions inherited from IrrIMGUI::IReferenceCounter
	IReferenceCounter (void)
	Constructor. More...
virtual	~IReferenceCounter (void)
	Destructor. More...
virtual void	grab (void)
	Call this method to grab an instance. More...
virtual void	drop (void)
	Call this method to drop an instance. If you drop the last used instance, the object is destroyed. More...
virtual irr::u32	getReferenceCount (void) const

Private Member Functions
void	updateScreenSize (void)
	Updates the screen size used for IMGUI. More...
void	updateTimer (void)
	Updated the IMGUI timers. More...
void	updateMouse (void)
	Update Mouse input information. More...
void	updateKeyboard (void)
	Update Keyboard input information. More...

Private Attributes
Private::IIMGUIDriver *	mpGUIDriver
irr::f32	mLastTime
CIMGUIEventStorage *	mpEventStorage

Static Private Attributes
static irr::u32	mHandleInstances = 0

Additional Inherited Members
Protected Member Functions inherited from IrrIMGUI::IIMGUIHandle
	IIMGUIHandle (void)
	Forbidden Constructor. More...

Detailed Description

Use an object of this class to setup the IMGUI for Irrlicht and to render the content.

Create an object of this handle in your project, when you need the IMGUI. You can create multiple object, but all of them will just use a single instance of the GUI (this is an IMGUI limitation). You can setup and use the same GUI from all instances of this handle.

If the last instance is destroyed, the IMGUI system will be shutdown.

To create an instance of this handle you need to pass an Irrlicht device object to the constructor. The Event-Storage pointer can be an "nullptr" or NULL, if you don't need mouse or keyboard input for your GUI.

To draw a GUI add the corresponding IMGUI element functions to your main loop between calling "startGUI()" and "drawAll()" of this class.

IrrIMGUI::CIMGUIHandle GUI(pDevice, &EventReceiver);

irr::scene::ISceneManager * const pSceneManager   = pDevice->getSceneManager();

// irrlicht main loop
while(pDevice->run())
{
  pDriver->beginScene(true, true, irr::video::SColor(255,100,101,140));

  // drawing the GUI
  GUI->startGUI();
  ImGui::Text("Hello, world!");
  ImGui::Text("Application average %.3f ms/frame (%.1f FPS)", 1000.0f / ImGui::GetIO().Framerate, ImGui::GetIO().Framerate);

  // render the scene
  pSceneManager->drawAll();

  // render the GUI
  mpGUI->drawAll();

  pDriver->endScene();
}

Definition at line 99 of file CIMGUIHandle.h.

Constructor & Destructor Documentation

IrrIMGUI::Private::CIMGUIHandle::CIMGUIHandle	(	irr::IrrlichtDevice *	pDevice,
		CIMGUIEventStorage *	pEventStorage = nullptr,
		SIMGUISettings const *	pSettings = nullptr
	)

Use this constructor when you want special settings.

Note

When you use multiple instances of this handle class, the settings will be applied to all instances at the same time.

Parameters

pDevice	Is a pointer to the Irrlicht Device.
pEventStorage	Is a pointer to the Event Storage that is used to transfer Mouse and Key input informations to the IMGUI. If you pass NULL or nullptr, no input informations are passed to the GUI.
pSettings	Is a pointer to the a Settings structure.

Definition at line 55 of file CIMGUIHandle.cpp.

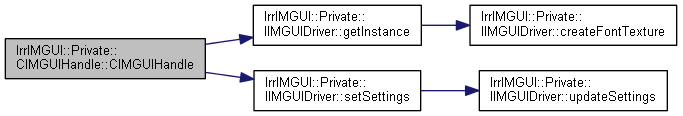

Here is the call graph for this function:

IrrIMGUI::Private::CIMGUIHandle::CIMGUIHandle	(	irr::IrrlichtDevice *	pDevice,
		CIMGUIEventStorage *	pEventStorage,
		SIMGUISettings const &	rSettings
	)

Use this constructor when you want special settings.

Note

When you use multiple instances of this handle class, the settings will be applied to all instances at the same time.

Parameters

pDevice	Is a pointer to the Irrlicht Device.
pEventStorage	Is a pointer to the Event Storage that is used to transfer Mouse and Key input informations to the IMGUI. If you pass NULL or nullptr, no input informations are passed to the GUI.
rSettings	Is a reference to the a Settings structure.

Definition at line 49 of file CIMGUIHandle.cpp.

IrrIMGUI::Private::CIMGUIHandle::~CIMGUIHandle ( void  )

virtual

Destructor.

Definition at line 70 of file CIMGUIHandle.cpp.

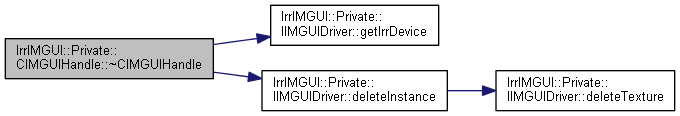

Here is the call graph for this function:

Member Function Documentation

ImFont * IrrIMGUI::Private::CIMGUIHandle::addDefaultFont ( ImFontConfig const *  pFontConfig = NULL )

virtual

Adds the default font to the IMGUI memory.

Parameters

pFontConfig

Is a pointer to the font configuration.

Returns

Returns a pointer to the font for later usage with PushFont(...) to activate this font.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 124 of file CIMGUIHandle.cpp.

Here is the caller graph for this function:

ImFont * IrrIMGUI::Private::CIMGUIHandle::addFont ( ImFontConfig const *  pFontConfig )

virtual

Adds a font to the IMGUI memory.

Parameters

pFontConfig

Is a pointer to the font configuration.

Returns

Returns a pointer to the font for later usage with PushFont(...) to activate this font.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 119 of file CIMGUIHandle.cpp.

ImFont * IrrIMGUI::Private::CIMGUIHandle::addFontFromFileTTF ( char const *  pFileName, float  FontSizeInPixel, ImFontConfig const *  pFontConfig = NULL, ImWchar const *  pGlyphRanges = NULL  )

virtual

Adds a font from a TTF file to the IMGUI memory.

Parameters

pFileName	Is the name of the file to add.
FontSizeInPixel	Is the desired font size to use.
pFontConfig	Is a pointer to the font configuration.
pGlyphRanges	Is the Glyph-Range to select the correct character set.

Returns

Returns a pointer to the font for later usage with PushFont(...) to activate this font.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 129 of file CIMGUIHandle.cpp.

ImFont * IrrIMGUI::Private::CIMGUIHandle::addFontFromMemoryCompressedBase85TTF ( char const *  pCompressedTTFDataBase85, float  FontSizeInPixel, ImFontConfig const *  pFontConfig = NULL, const ImWchar *  pGlyphRanges = NULL  )

virtual

Adds a font from a compressed TTF byte array that uses the base85 character encoding to the IMGUI memory.

Parameters

pCompressedTTFDataBase85	Is a pointer to the char array.
FontSizeInPixel	Is the desired font size to use.
pFontConfig	Is a pointer to the font configuration.
pGlyphRanges	Is the Glyph-Range to select the correct character set.

Returns

Returns a pointer to the font for later usage with PushFont(...) to activate this font.

Note

This function does not transfer the ownership of the byte array. You are responsible for delete this memory after the font is in graphic memory.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 144 of file CIMGUIHandle.cpp.

ImFont * IrrIMGUI::Private::CIMGUIHandle::addFontFromMemoryCompressedTTF ( void const *  pCompressedTTFData, int  CompressedTTFSize, float  FontSizeInPixel, ImFontConfig const *  pFontConfig = NULL, ImWchar const *  pGlyphRanges = NULL  )

virtual

Adds a font from a compressed TTF byte array to the IMGUI memory.

Parameters

pCompressedTTFData	Is a pointer to the byte array.
CompressedTTFSize	Is the size of the array in byte.
FontSizeInPixel	Is the desired font size to use.
pFontConfig	Is a pointer to the font configuration.
pGlyphRanges	Is the Glyph-Range to select the correct character set.

Returns

Returns a pointer to the font for later usage with PushFont(...) to activate this font.

Note

This function does not transfer the ownership of the byte array. You are responsible for delete this memory after the font is in graphic memory.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 139 of file CIMGUIHandle.cpp.

ImFont * IrrIMGUI::Private::CIMGUIHandle::addFontFromMemoryTTF ( void *  pTTFData, int  TTFSize, float  FontSizeInPixel, ImFontConfig const *  pFontConfig = NULL, ImWchar const *  pGlyphRanges = NULL  )

virtual

Adds a font from a TTF byte array to the IMGUI memory.

Parameters

pTTFData	Is a pointer to the byte array.
TTFSize	Is the size of the array in byte.
FontSizeInPixel	Is the desired font size to use.
pFontConfig	Is a pointer to the font configuration.
pGlyphRanges	Is the Glyph-Range to select the correct character set.

Returns

Returns a pointer to the font for later usage with PushFont(...) to activate this font.

Attention

This function transfers the ownership of 'pTTFData' to the IMGUI System and will be deleted automatically. Do not delete it by yourself!

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 134 of file CIMGUIHandle.cpp.

void IrrIMGUI::Private::CIMGUIHandle::compileFonts ( void  )

virtual

This function copies all fonts that have been added with "addFont/addDefaultFont" into graphic memory.

Attention

Call this function before using the fonts that have been added.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 149 of file CIMGUIHandle.cpp.

Here is the call graph for this function:

IGUITexture * IrrIMGUI::Private::CIMGUIHandle::createTexture ( irr::video::IImage *  pImage )

virtual

Creates a GUI texture object out of an Irrlicht image.

Parameters

pImage

Is a pointer to an Irrlicht image object.

Returns

Returns an GUI texture object.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 183 of file CIMGUIHandle.cpp.

Here is the call graph for this function:

IGUITexture * IrrIMGUI::Private::CIMGUIHandle::createTexture ( irr::video::ITexture *  pTexture )

virtual

Creates a GUI texture object out of an Irrlicht texture.

Parameters

pTexture

Is a pointer to an Irrlicht texture object.

Returns

Returns an GUI texture object.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 188 of file CIMGUIHandle.cpp.

Here is the call graph for this function:

void IrrIMGUI::Private::CIMGUIHandle::deleteTexture ( IGUITexture *  pGUITexture )

virtual

Deletes an texture from graphic memory.

Parameters

pGUITexture

Is a pointer to the texture to delete. Do not use it afterwards!

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 205 of file CIMGUIHandle.cpp.

Here is the call graph for this function:

void IrrIMGUI::Private::CIMGUIHandle::drawAll ( void  )

virtual

Call this function after "startGUI()" and after you draw your GUI elements. It will render all elements to the screen (do not call it before rendering the 3D Scene!).

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 91 of file CIMGUIHandle.cpp.

ImWchar const * IrrIMGUI::Private::CIMGUIHandle::getGlyphRangesChinese ( void  )

virtual

Returns

Returns the Japanese + full set of about 21000 CJK Unified Ideographs

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 173 of file CIMGUIHandle.cpp.

ImWchar const * IrrIMGUI::Private::CIMGUIHandle::getGlyphRangesCyrillic ( void  )

virtual

Returns

Default + about 400 Cyrillic characters

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 178 of file CIMGUIHandle.cpp.

ImWchar const * IrrIMGUI::Private::CIMGUIHandle::getGlyphRangesDefault ( void  )

virtual

Returns

Returns the Basic Latin and Extended Latin Range.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 163 of file CIMGUIHandle.cpp.

ImWchar const * IrrIMGUI::Private::CIMGUIHandle::getGlyphRangesJapanese ( void  )

virtual

Returns

Returns the Default + Hiragana, Katakana, Half-Width, Selection of 1946 Ideographs

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 168 of file CIMGUIHandle.cpp.

SIMGUISettings const & IrrIMGUI::Private::CIMGUIHandle::getSettings ( void  ) const

virtual

Returns

Returns a constant reference to the currently applied settings structure.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 109 of file CIMGUIHandle.cpp.

Here is the call graph for this function:

void IrrIMGUI::Private::CIMGUIHandle::resetFonts ( void  )

virtual

Resets the font memory and restores the default font as the one and only font in the system.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 155 of file CIMGUIHandle.cpp.

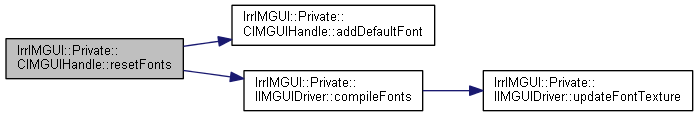

Here is the call graph for this function:

void IrrIMGUI::Private::CIMGUIHandle::setSettings ( SIMGUISettings const &  rSettings )

virtual

Parameters

rSettings

is a reference to a Setting structure that should be applied.

Note

The settings are applied to all GUI handles at the same time, since IMGUI uses internally a single instance.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 114 of file CIMGUIHandle.cpp.

Here is the call graph for this function:

void IrrIMGUI::Private::CIMGUIHandle::startGUI ( void  )

virtual

Call this methods before you draw the IMGUI elements and before calling "drawAll()".

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 98 of file CIMGUIHandle.cpp.

Here is the call graph for this function:

void IrrIMGUI::Private::CIMGUIHandle::updateKeyboard ( void  )

private

Update Keyboard input information.

void IrrIMGUI::Private::CIMGUIHandle::updateMouse ( void  )

private

Update Mouse input information.

void IrrIMGUI::Private::CIMGUIHandle::updateScreenSize ( void  )

private

Updates the screen size used for IMGUI.

void IrrIMGUI::Private::CIMGUIHandle::updateTexture ( IGUITexture *  pGUITexture, irr::video::IImage *  pImage  )

virtual

Updates a GUI texture object with an Irrlicht image.

Parameters

pGUITexture	Is a pointer to the GUI texture object.
pImage	Is a pointer to an Irrlicht image object.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 193 of file CIMGUIHandle.cpp.

Here is the call graph for this function:

void IrrIMGUI::Private::CIMGUIHandle::updateTexture ( IGUITexture *  pGUITexture, irr::video::ITexture *  pTexture  )

virtual

Updates a GUI texture object with an Irrlicht texture.

Parameters

pGUITexture	Is a pointer to the GUI texture object.
pTexture	Is a pointer to an Irrlicht image object.

Implements IrrIMGUI::IIMGUIHandle.

Definition at line 199 of file CIMGUIHandle.cpp.

Here is the call graph for this function:

void IrrIMGUI::Private::CIMGUIHandle::updateTimer ( void  )

private

Updated the IMGUI timers.

Member Data Documentation

irr::u32 IrrIMGUI::Private::CIMGUIHandle::mHandleInstances = 0

staticprivate

Definition at line 293 of file CIMGUIHandle.h.

irr::f32 IrrIMGUI::Private::CIMGUIHandle::mLastTime

private

Definition at line 291 of file CIMGUIHandle.h.

CIMGUIEventStorage* IrrIMGUI::Private::CIMGUIHandle::mpEventStorage

private

Definition at line 292 of file CIMGUIHandle.h.

Private::IIMGUIDriver* IrrIMGUI::Private::CIMGUIHandle::mpGUIDriver

private

Definition at line 290 of file CIMGUIHandle.h.

---

The documentation for this class was generated from the following files:

• D:/Projects/CPP/Libraries/IrrIMGUI/IrrIMGUI/source/CIMGUIHandle.h
• D:/Projects/CPP/Libraries/IrrIMGUI/IrrIMGUI/source/CIMGUIHandle.cpp
