Functions that help adapting Irrlicht logic to IMGUI. More...

Functions
irr::video::SColor	getColorFromImGuiColor (irr::u32 ImGuiColor)
	Translates an IMGUI Color to an Irrlicht Color. More...

void	copyImGuiVertices2IrrlichtVertices (ImVector< ImDrawVert > &rIMGUIVertexBuffer, irr::video::S3DVertex *pIrrlichtVertex, irr::core::vector3df const &rOffset)
	Copies a list of IMGUI vertices to a list of Irrlicht Vertices. More...

ImTextureID	copyTextureIDFromGUIFont (irr::video::IVideoDriver *pIrrDriver)
	Creates a Texture object from the currently loaded Fonts. More...

ImTextureID	copyTextureIDFromRawData (irr::video::IVideoDriver pIrrDriver, EColorFormat ColorFormat, irr::u8 pPixelData, irr::u32 Width, irr::u32 Height)
	Created a Texture object from raw data. More...

ImTextureID	copyTextureIDFromImage (irr::video::IVideoDriver pIrrDriver, irr::video::IImage pImage)
	Creates a Texture object from the currently loaded Fonts. More...

void	deleteTextureID (irr::video::IVideoDriver pIrrDriver, CGUITexture pGUITexture)
	Deleted the memory from this texture ID. More...

void	applyMovingClippingPlaneWorkaround (irr::video::IVideoDriver *pIrrDriver)
	Applies a workaround for an Irrlicht issue with moving clipping planes. More...

void	setupStandardGUIMaterial (irr::video::SMaterial &rMaterial, irr::video::ITexture *pTexture)
	Sets the standard GUI material settings. More...

void	applyClippingRect (irr::video::IVideoDriver *pIrrDriver, ImVec4 &rClippingRect)
	Apples a clipping rectangle. Outside of this rectangle nothing is rendered. More...

void	disableClippingRect (irr::video::IVideoDriver *pIrrDriver)
	Disables the clipping rectangle. More...

Variables
static irr::u8 *const	IMGUI_FONT_ID = nullptr
	A magic number for the default font ID IMGUI. More...

static irr::u32	TextureCreationID = 0
	This is used to create an unique texture name. More...

static bool	IsTrilinearFilterEnabled = false
	Indicates, if trilinear filter should be enabled for textures. More...

Detailed Description

Functions that help adapting Irrlicht logic to IMGUI.

Function Documentation

void IrrIMGUI::Private::Driver::IrrlichtHelper::applyClippingRect	(	irr::video::IVideoDriver *	pIrrDriver,
		ImVec4 &	rClippingRect
	)

Apples a clipping rectangle. Outside of this rectangle nothing is rendered.

Parameters

pIrrDriver	Is a pointer to the Irrlicht driver object.
rClippingRect	Is the IMGUI clipping rect to apply.

Definition at line 710 of file CIrrlichtIMGUIDriver.cpp.

Here is the caller graph for this function:

void IrrIMGUI::Private::Driver::IrrlichtHelper::applyMovingClippingPlaneWorkaround ( irr::video::IVideoDriver * pIrrDriver )

Applies a workaround for an Irrlicht issue with moving clipping planes.

Parameters

pIrrDriver Is a pointer to the Irrlicht driver object.

Definition at line 635 of file CIrrlichtIMGUIDriver.cpp.

Here is the caller graph for this function:

void IrrIMGUI::Private::Driver::IrrlichtHelper::copyImGuiVertices2IrrlichtVertices	(	ImVector< ImDrawVert > &	rIMGUIVertexBuffer,
		irr::video::S3DVertex *	pIrrlichtVertex,
		irr::core::vector3df const &	rOffset
	)

Copies a list of IMGUI vertices to a list of Irrlicht Vertices.

Parameters

rIMGUIVertexBuffer	Is an IMGUI Vertex-Buffer object.
pIrrlichtVertex	Is a pointer to an Irrlicht Vertex Array.
rOffset	Is an offset that is applied to every vertex.

Definition at line 493 of file CIrrlichtIMGUIDriver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

ImTextureID IrrIMGUI::Private::Driver::IrrlichtHelper::copyTextureIDFromGUIFont ( irr::video::IVideoDriver * pIrrDriver )

Creates a Texture object from the currently loaded Fonts.

Parameters

pIrrDriver Is a pointer to the Irrlicht driver object.

Returns: Returns ITexture object as IMGUI Texture ID.

Definition at line 583 of file CIrrlichtIMGUIDriver.cpp.

Here is the call graph for this function:

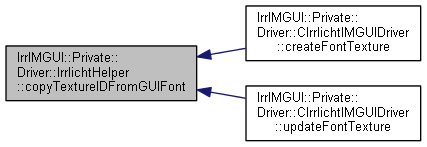

Here is the caller graph for this function:

ImTextureID IrrIMGUI::Private::Driver::IrrlichtHelper::copyTextureIDFromImage	(	irr::video::IVideoDriver *	pIrrDriver,
		irr::video::IImage *	pImage
	)

Creates a Texture object from the currently loaded Fonts.

Parameters

pIrrDriver	Is a pointer to the Irrlicht driver object.
pImage	Is a pointer to an Irrlicht IImage object.

Returns: Returns ITexture object as IMGUI Texture ID.

Definition at line 598 of file CIrrlichtIMGUIDriver.cpp.

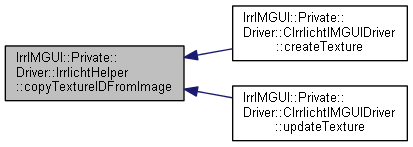

Here is the caller graph for this function:

ImTextureID IrrIMGUI::Private::Driver::IrrlichtHelper::copyTextureIDFromRawData	(	irr::video::IVideoDriver *	pIrrDriver,
		EColorFormat	ColorFormat,
		irr::u8 *	pPixelData,
		irr::u32	Width,
		irr::u32	Height
	)

Created a Texture object from raw data.

Parameters

pIrrDriver	Is a pointer to the Irrlicht driver object.
ColorFormat	Is the format of the Color of every Pixel.
pPixelData	Is a pointer to the pixel array.
Width	Is the number of Pixels in X direction.
Height	Is the number of Pixels in Y direction.

Definition at line 508 of file CIrrlichtIMGUIDriver.cpp.

Here is the call graph for this function:

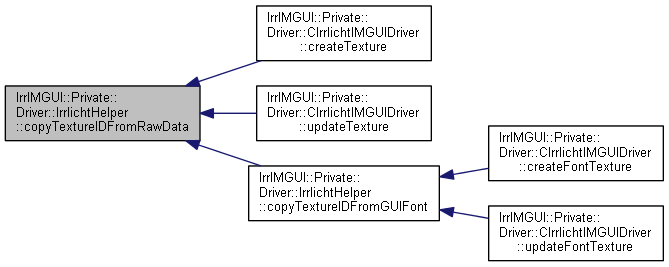

Here is the caller graph for this function:

void IrrIMGUI::Private::Driver::IrrlichtHelper::deleteTextureID	(	irr::video::IVideoDriver *	pIrrDriver,
		CGUITexture *	pGUITexture
	)

Deleted the memory from this texture ID.

Parameters

pIrrDriver	Is a pointer to the Irrlicht driver object.
pGUITexture	is a pointer to the texture object.

Definition at line 616 of file CIrrlichtIMGUIDriver.cpp.

Here is the caller graph for this function:

void IrrIMGUI::Private::Driver::IrrlichtHelper::disableClippingRect ( irr::video::IVideoDriver * pIrrDriver )

Disables the clipping rectangle.

Parameters

pIrrDriver Is a pointer to the Irrlicht driver object.

Definition at line 724 of file CIrrlichtIMGUIDriver.cpp.

Here is the caller graph for this function:

irr::video::SColor IrrIMGUI::Private::Driver::IrrlichtHelper::getColorFromImGuiColor ( irr::u32 ImGuiColor )

Translates an IMGUI Color to an Irrlicht Color.

Parameters

ImGuiColor is the u32 Color value from IMGUI.

Returns: Returns a SColor object for Irrlicht.

Definition at line 481 of file CIrrlichtIMGUIDriver.cpp.

Here is the caller graph for this function:

void IrrIMGUI::Private::Driver::IrrlichtHelper::setupStandardGUIMaterial	(	irr::video::SMaterial &	rMaterial,
		irr::video::ITexture *	pTexture
	)

Sets the standard GUI material settings.

Parameters

rMaterial	Is a reference to the material where the settings should be applied to.
pTexture	Is the texture, that should be used.

Definition at line 692 of file CIrrlichtIMGUIDriver.cpp.

Here is the caller graph for this function:

Variable Documentation

irr::u8* const IrrIMGUI::Private::Driver::IrrlichtHelper::IMGUI_FONT_ID = nullptr

static

A magic number for the default font ID IMGUI.

Definition at line 64 of file CIrrlichtIMGUIDriver.cpp.

bool IrrIMGUI::Private::Driver::IrrlichtHelper::IsTrilinearFilterEnabled = false

static

Indicates, if trilinear filter should be enabled for textures.

Definition at line 70 of file CIrrlichtIMGUIDriver.cpp.

irr::u32 IrrIMGUI::Private::Driver::IrrlichtHelper::TextureCreationID = 0

static

This is used to create an unique texture name.

Definition at line 67 of file CIrrlichtIMGUIDriver.cpp.
